If you're installing a grid-connected solar and battery system, one feature you absolutely need to understand is anti-backflow protection. Also known as "reverse power protection" or "zero-export control," this feature prevents your system from sending excess electricity back to the grid — which can happen more often than you might think, and the consequences can be costly.

What Is Backflow and Why Does It Matter?

When your solar panels generate more electricity than your home consumes, the excess energy has to go somewhere. If your battery is full and your system isn't configured to prevent it, that surplus power flows back into the utility grid. This is called "backflow" or "reverse power flow."

Why is this a problem?

• Utility penalties: Many U.S. utilities impose fees or penalties for unauthorized backflow, especially in areas without net metering programs.

• Grid safety: Unexpected reverse power flow can interfere with grid voltage regulation and protective equipment.

• Billing complications: Some meters can't properly account for reverse flow, leading to billing disputes.

In states where net metering has been reduced or eliminated (such as California's NEM 3.0), preventing backflow has become even more important — because the credit you receive for exported power may be far less than what you pay for imported power.

How Anti-Backflow Protection Works

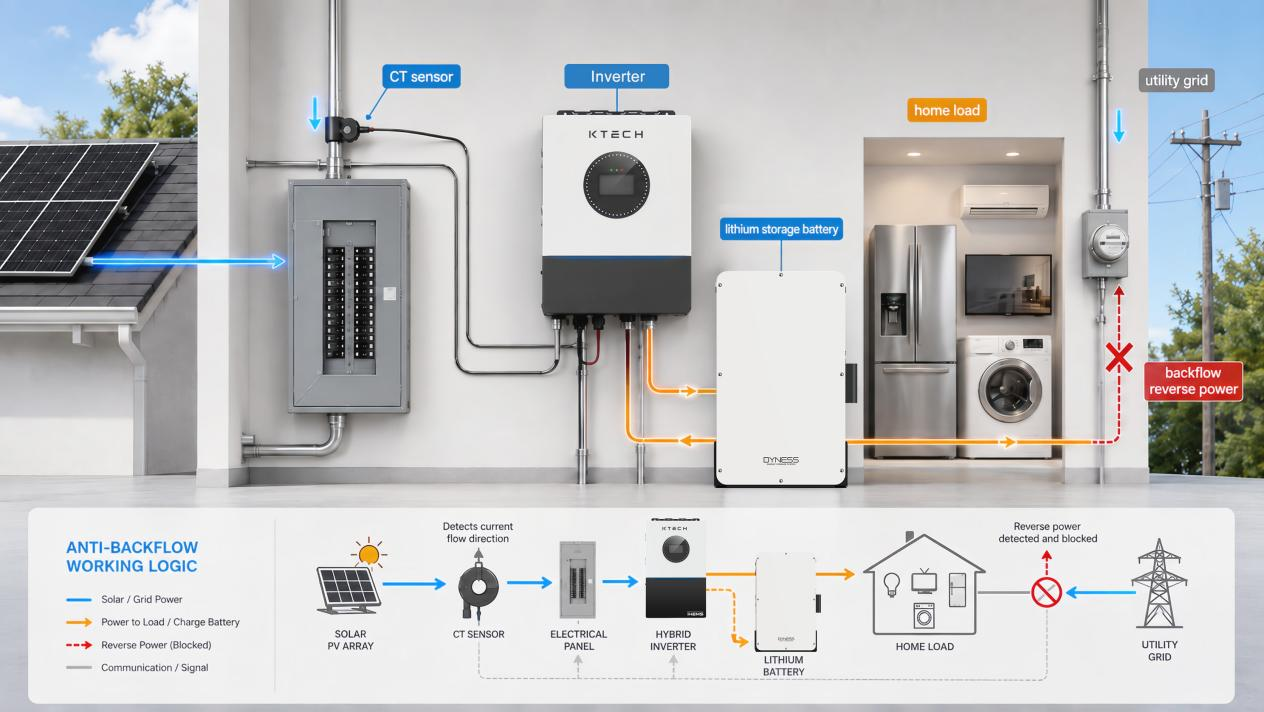

Anti-backflow protection uses a Current Transformer (CT) sensor installed at your main electrical panel to monitor power flow at the grid connection point in real time. Here's the basic logic:

1. The CT sensor continuously measures whether power is flowing into or out of your home.

2. When the system detects that excess solar power is about to flow back to the grid, the inverter automatically reduces its output to match your home's actual consumption.

3. If a battery is connected, the system prioritizes sending excess solar to the battery first, only curtailing solar output if the battery is full.

This all happens automatically in milliseconds — no manual intervention required.

The One Mistake That Defeats Anti-Backflow

The most common reason anti-backflow protection fails isn't a software bug or equipment failure — it's a simple installation error: the CT sensor is installed facing the wrong direction.

CT sensors have an arrow or marking indicating the expected direction of current flow. The arrow must point from the grid toward your home (the load direction). If installed backwards, the system reads the power flow in reverse — it thinks you're importing when you're actually exporting, and vice versa. The anti-backflow feature effectively becomes an anti-import feature, which is the exact opposite of what you want.

Installation tip: After installing the CT, verify the direction by checking the inverter's real-time power display while you have known consumption. If the display shows negative consumption when appliances are running, the CT is likely reversed.

When to Enable or Disable Anti-Backflow

Anti-Backflow vs. Net Metering: Not the Same Thing

A common point of confusion: anti-backflow protection and net metering are related but serve different purposes.

• Net metering is a billing arrangement with your utility that credits you for excess solar exported to the grid.

• Anti-backflow protection is a hardware/software feature that prevents excess solar from being exported in the first place.

If you have favorable net metering, you may want to disable anti-backflow to maximize export credits. But if your utility has reduced net metering benefits (as many have), anti-backflow protection ensures you're using your solar energy efficiently rather than giving it away at low rates.

System Requirements

Anti-backflow protection requires:

• A hybrid or grid-tied inverter with built-in anti-backflow functionality

• An external CT sensor installed at the main panel

• (Optional) An external power meter for more precise monitoring

Most modern hybrid inverters — including those available on the Candlon platform — come with anti-backflow as a standard feature. The CT sensor and external meter are typically included or available as accessories.

Summary

Anti-backflow protection is one of those features that works silently in the background — until it doesn't. Making sure it's properly configured and the CT sensor is correctly oriented can save you from unexpected utility charges and keep your system running smoothly.

If you're planning a grid-connected solar + storage installation, ask your installer about anti-backflow settings. And if you're looking for a hybrid inverter with built-in anti-backflow, explore Candlon's selection of U.S.-ready energy products.
