If you've ever looked at your home's electrical panel, you've probably noticed two main hot wires coming in, along with a neutral. That's split-phase power — the standard residential electrical system used throughout North America. Understanding how it works is essential before installing solar panels, battery storage, or a hybrid inverter.

What Is Split-Phase Power?

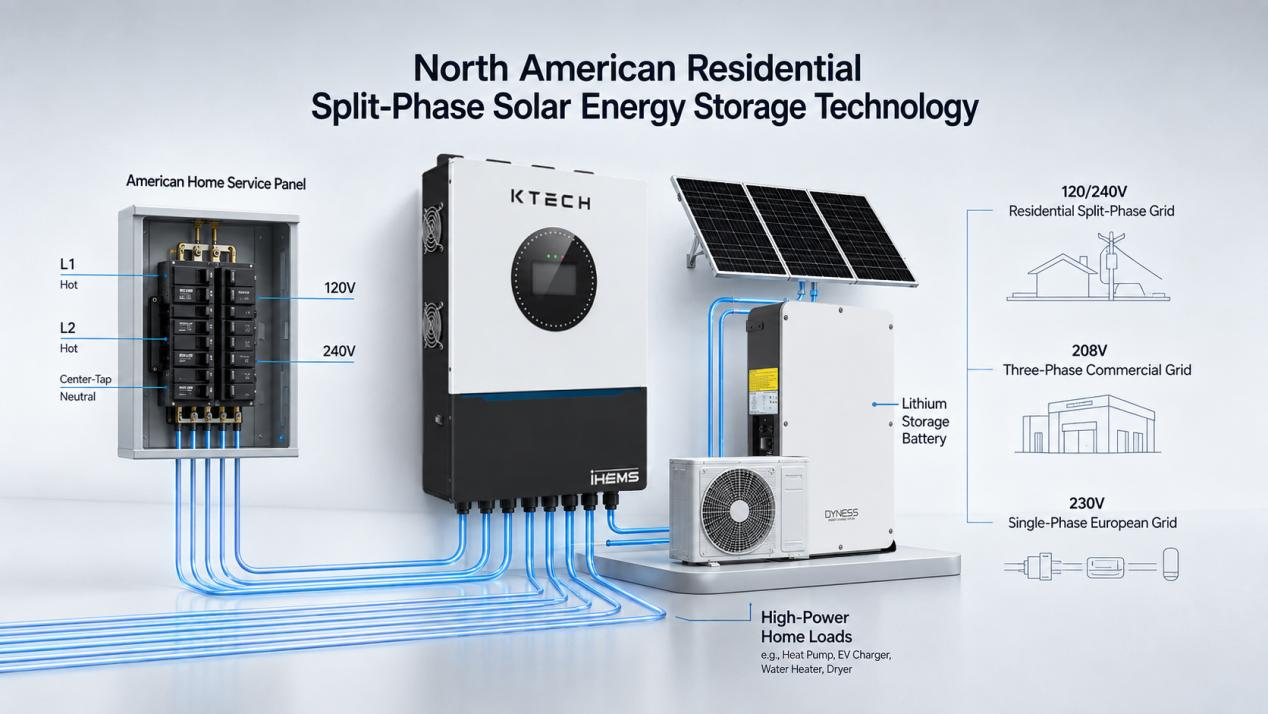

Split-phase power is a 120V/240V system where the utility transformer provides 240V across two hot legs (L1 and L2), with a center-tap neutral that splits the voltage into two 120V halves. Most household outlets run on 120V (connected to either L1 or L2 plus neutral), while large appliances like electric dryers, ovens, and EV chargers use 240V (connected across L1 and L2).

This is different from:

• Single-phase 230V used in Europe, China, and most of Asia

• Three-phase power used in commercial buildings and some apartment complexes

Why This Matters for Solar + Storage

When you install a hybrid inverter, it needs to match your home's electrical system. An inverter designed for 230V single-phase won't work correctly on a 120V/240V split-phase system — and vice versa. This is why selecting the right inverter for the U.S. market is critical.

Split-phase compatible inverters are sometimes called "split-phase" or "American split-phase" models. They connect to both L1 and L2, providing balanced 120V output on each leg while supporting 240V loads across both legs.

Key Considerations for U.S. Installations

1. Grid Type Setting

This is one of the most common installation errors. U.S. residential split-phase power uses 120V/240V (sometimes listed as 240V/120V). However, some installers mistakenly set the grid type to 208V — which is a three-phase commercial system, not residential. Setting the wrong grid type can trigger fault codes (such as Error 27) and prevent the system from operating correctly.

2. Neutral Wire Connections

Split-phase inverters typically have two N (neutral) terminals on both AC input and AC output sides. All four N terminals must be connected — missing any one of them can cause the system to malfunction. This is a frequent issue during installation, especially when electricians are used to single-phase systems that only have one neutral connection.

3. Load Balancing Across L1 and L2

In a split-phase system, it's important to balance loads across both legs. If all major appliances are on L1, that leg may overload while L2 sits idle. For solar + storage systems, the inverter manages this automatically in most cases, but installers should verify that L1 and L2 voltage and current are reasonably balanced after commissioning.

4. Surge and Motor Loads

Large motor-driven appliances (air conditioners, well pumps, table saws) can draw 3-7x their rated current during startup. In split-phase systems, it's especially important to distribute these inductive loads across both legs rather than concentrating them on one. As a general rule, keep large motor loads below 60-70% of the inverter's rated power to avoid triggering overcurrent protection.

Split-Phase and Parallel Operation

Some homeowners need more power than a single inverter can provide. Multiple split-phase inverters can be connected in parallel — up to 6 units in many systems — to increase total capacity. However, parallel operation adds complexity:

• All units must have identical firmware versions

• Parallel communication cables must use shielded 8-core Ethernet cables with magnetic ring suppressors (standard Ethernet cables can cause communication failures)

• All parallel units should connect to the same battery bank

• Cable length between units should not exceed 5 meters (16 feet)

For most residential applications, a single high-power inverter (12kW or 35kW) is simpler and more reliable than parallel configurations. Consider parallel only when a single unit cannot meet your peak demand.

Choosing the Right System

When selecting a hybrid inverter for a U.S. home, verify:

• ✅ Split-phase 120V/240V compatibility

• ✅ 60Hz frequency (not 50Hz)

• ✅ UL/certification compliance for your local jurisdiction

• ✅ NEC 2017/2020 code requirements (AFCI, RSD, GFCI where applicable)

• ✅ IP66 rating for outdoor installation (wall, balcony, or garage exterior)
