Product Parameters:

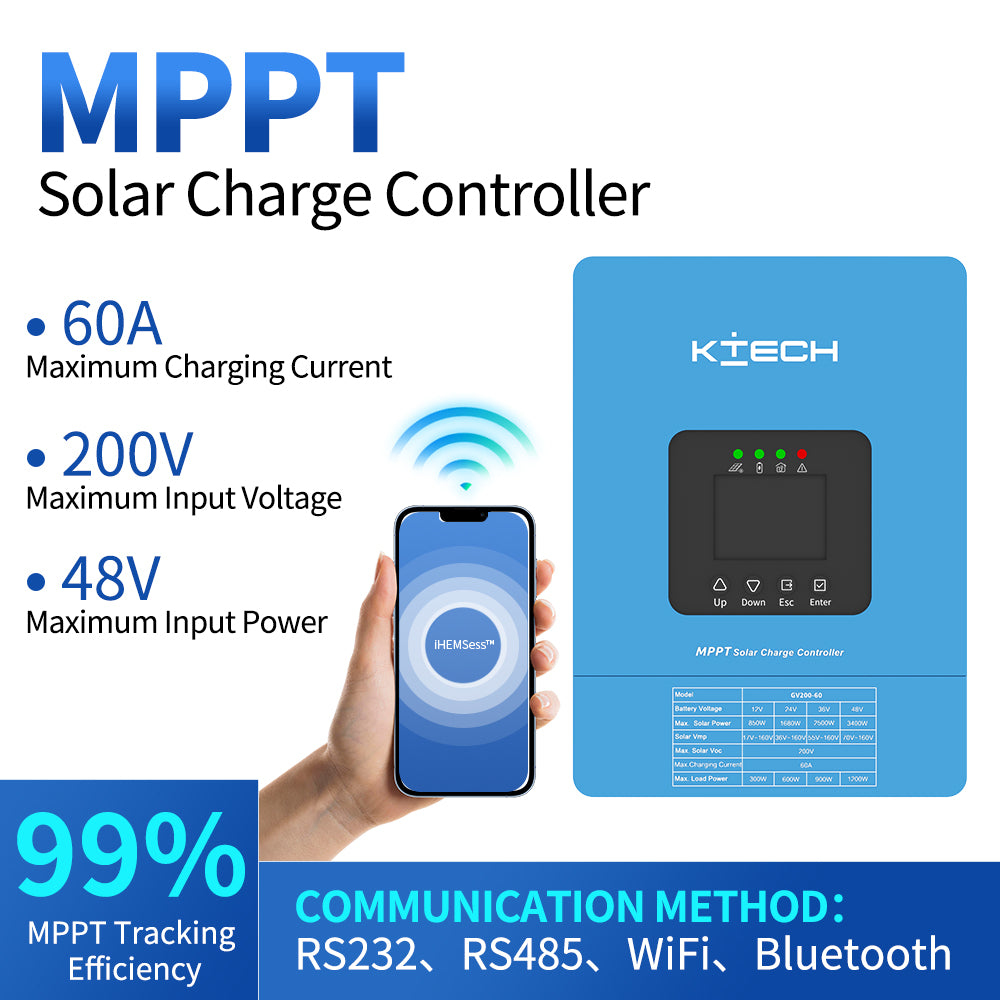

Model: GV200-60
Supported Battery Types : SLD/GEL/FLD/LI/USE
Battery Rated Voltage : 12V/24V/36V/48V Auto
Battery Voltage : 9V~65V
Maximum Charging Current : 60A
Temperature Compensation Coefficient : -3mv/℃/2V(Default Value)
Maximum Input Voltage : 200V(195V Protection, 190V Recovery)
Maximum Input Current : 50A
Vmp : 17V~160V/12V; 36V~160V/24V; 55V~160V/36V;70~160V/48V;
Maximum Input Power : 850W/12V ; 1680W/24V; 2500W/36V ; 3400W/48V
Maximum Power Point Voltage Range : (Battery Voltage+2V) ~160V
MPPT Tracking Efficiency : >99%
Conversion Efficiency : 85%-98%(10%-100% of Rated Power)
Rated Load Current : 25A
Maximum Capacitive Load Capacity : 10000uF
Load Operating Mode : Pure Light Control,Light Time Control,Manual Mode (Default),Debug Mode,Always On
Protection Functions:
PV Overvoltage ProtectionPV Reverse Polarity Protection 、 PV Overpower Protection、Nighttime Anti-Reverse Charging Protection 、 Controller Overtemperature Protection、Load Short Circuit Protection、 Load Overload Protection、Battery Overvoltage/Overdischarge Protection、 Battery Reverse Polarity Protection 、 Battery Overtemperature Protection、TVS Surge Protection
No-Load Loss : <0.5W
Operating Temperature : -10℃~+55℃
Waterproof Rating : IP20
Weight : 3.6kg
Communication Method : RS232、RS485、WiFi、Bluetooth
Altitude : ≤ 3000m
Product Dimensions : 280x206x106.5mm
Cooling Method : Natural Cooling
Historical Data : Can store 256 event records and 1024 days of historical data.
