Product Parameters:
Model: KE- 10 KL1EF

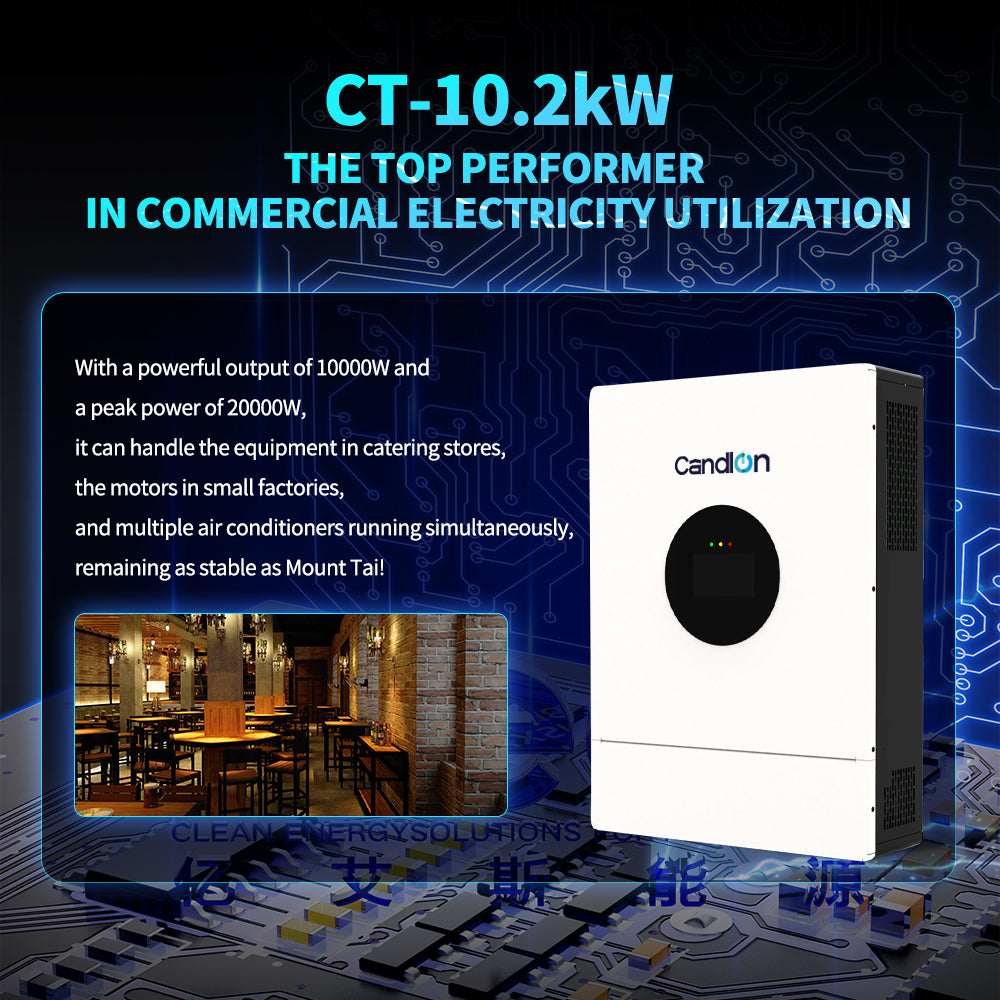

Rated output power: 10,000W
Maximum peak power: 20,000W
Rated output voltage: 230Vac, single phase/parallel phase
Rated battery :51.2Vdc
Input Voltage Range :90~275Vac
Model: KE-10KLSUF
Rated output :10,000W
Peak power :20,000W
Rated output voltage : 120 Vac, single phase / 240 Vac.
Rated battery voltage :60Vdc
Input Voltage Range :90~140Vac
Synthesized parameters:
Motor Load Capacity :6 HP
Rated frequency: 50/60Hz

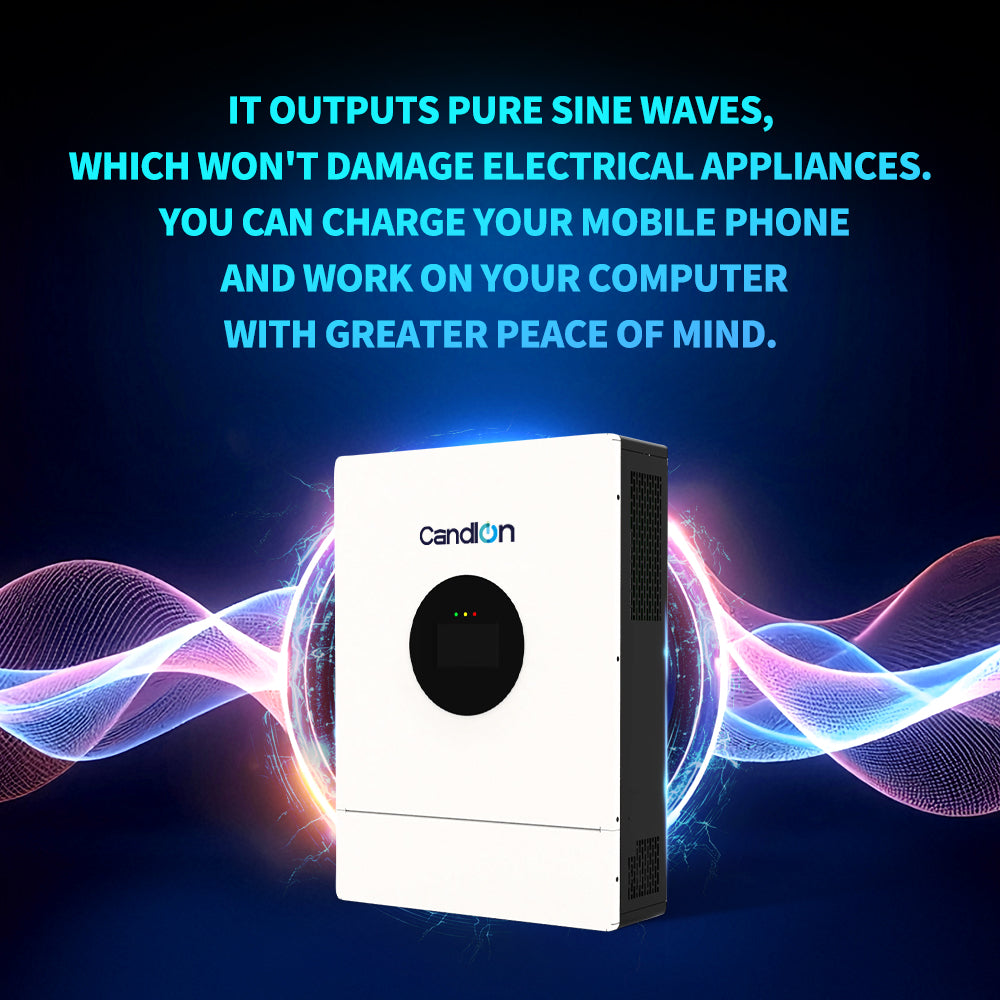

Output waveform: Pure sine wave
Switching time :10ms (UPS) / 20ms (application)

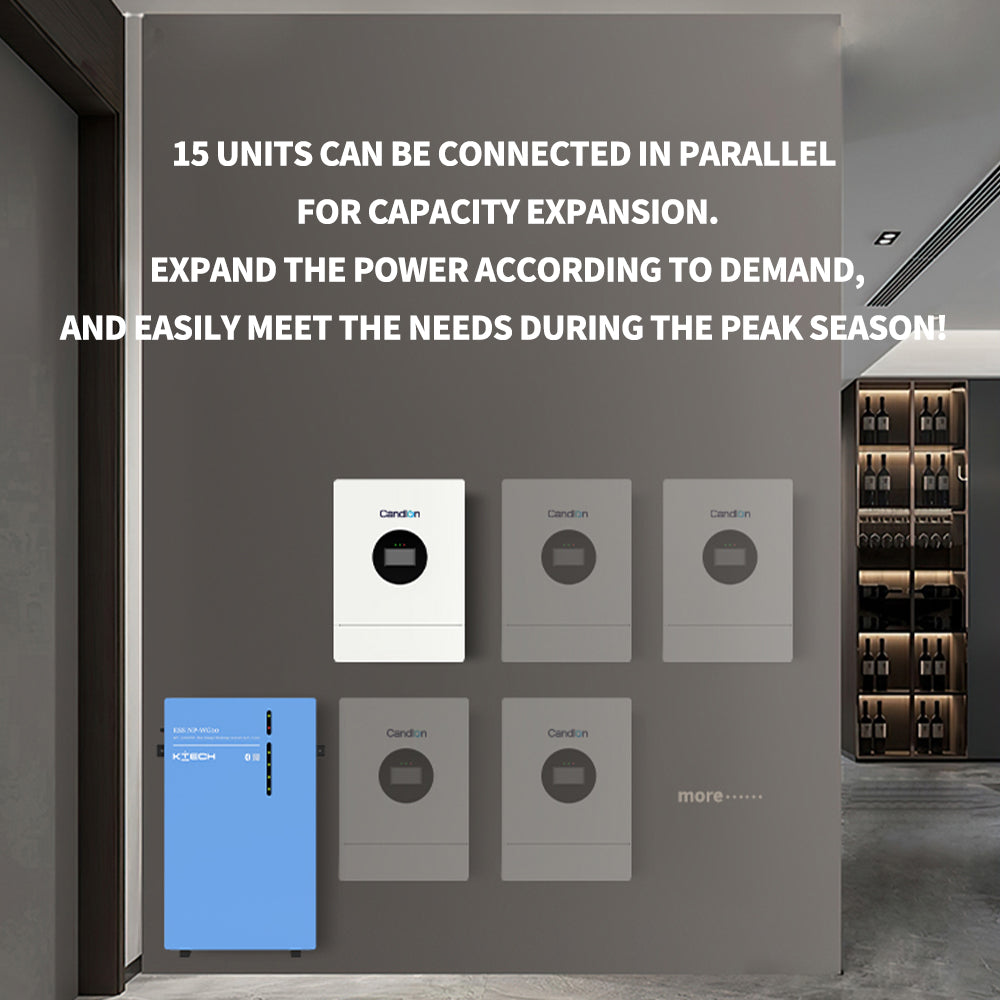

Number of parallel connections: 1 - 15 units
Overload protection :Anti-delay overload protection is adopted.
Battery type: Lithium-ion / Lead-acid / User-defined ; Battery type: Lithium-ion / Lead-acid
Voltage range: 40 ~ 60Vdc
Maximum PV charging current: 200A
Maximum utility/generator charging current: 120A
Maximum Combined Charging Current: 200A
Number of MPPT circuits: 2
Maximum input power: 5,500W+5,500W
Maximum input current 22A+22A
Maximum open circuit voltage: 500Vdc+500Vdc
MPPT operating voltage range: 125 ~425Vdc
Input frequency range: 50/60Hz
Bypass overload current: 63A
MPPT tracking efficiency:99.9%
Maximum battery inverter efficiency:92%
Size: 620*445*130mm
Weight: 27kg
Protection level: IP20, indoor use only
Ambient temperature: -10 ~ 55 ℃ 45 ℃ above the derating use
Noise: less than 60dB
Cooling method: built-in fan
Warranty: 2 years
Built-in interface Wi-Fi / BLE / RS 485 / CAN / USB / dry contact
External module (optional): Bluetooth
